How to Use Remesh in Neural4D Studio
Before You Start
Find Remesh in the model bottom toolbar, set up a remesh job, and check the result before downloading. Follow this guide in Neural4D Studio.
Open the model you want to work on and decide what you will check in the result, such as its outline or small parts. For a broader overview of the feature and its uses, see the Remesh feature overview.
Check your input: Remesh requires a triangle-topology model. If your current model already has Quad topology, choose a triangle-topology model from your library.
Step 1: Find Remesh in the Model View

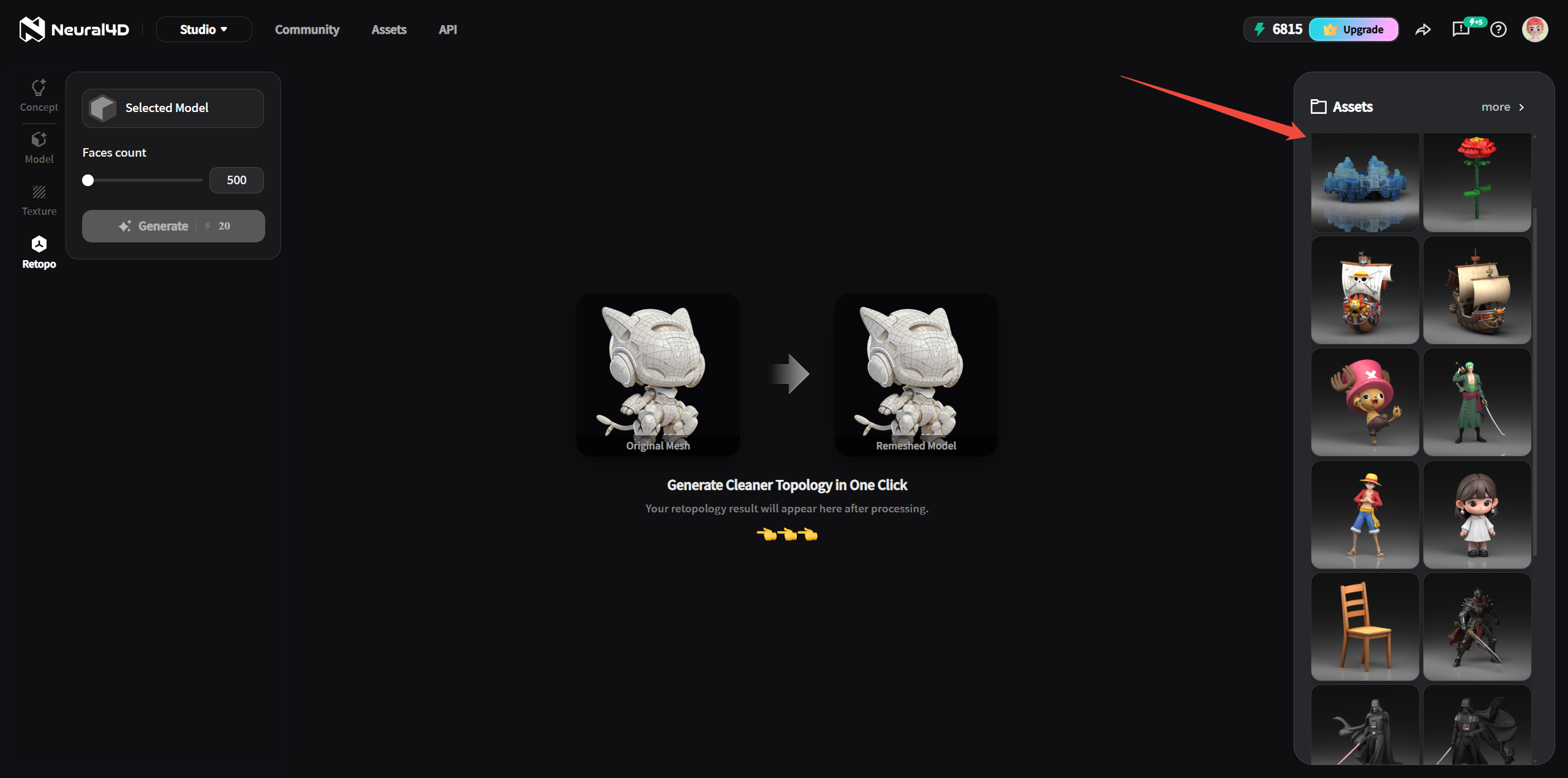

In Neural4D Studio, open your model from the library. Look below the model for the bottom toolbar, then select Remesh to open its controls.
Step 2: Set Up the Job
- Select the output topology: Quad or Triangle. If the next step is editing or rigging, consider Quad and inspect the resulting topology in your 3D application.
- Set the target face count using the control. Use your project's mesh budget as a starting point, then assess whether the result keeps enough shape detail.
- Check both settings before starting. If you switch the topology option, check the target again because the available ranges differ.
Available targets: Quad supports 1,000 to 100,000 faces; Triangle supports 10,000 to 100,000 faces. These values are targets for the job.
Step 3: Run Remesh and Check the Result

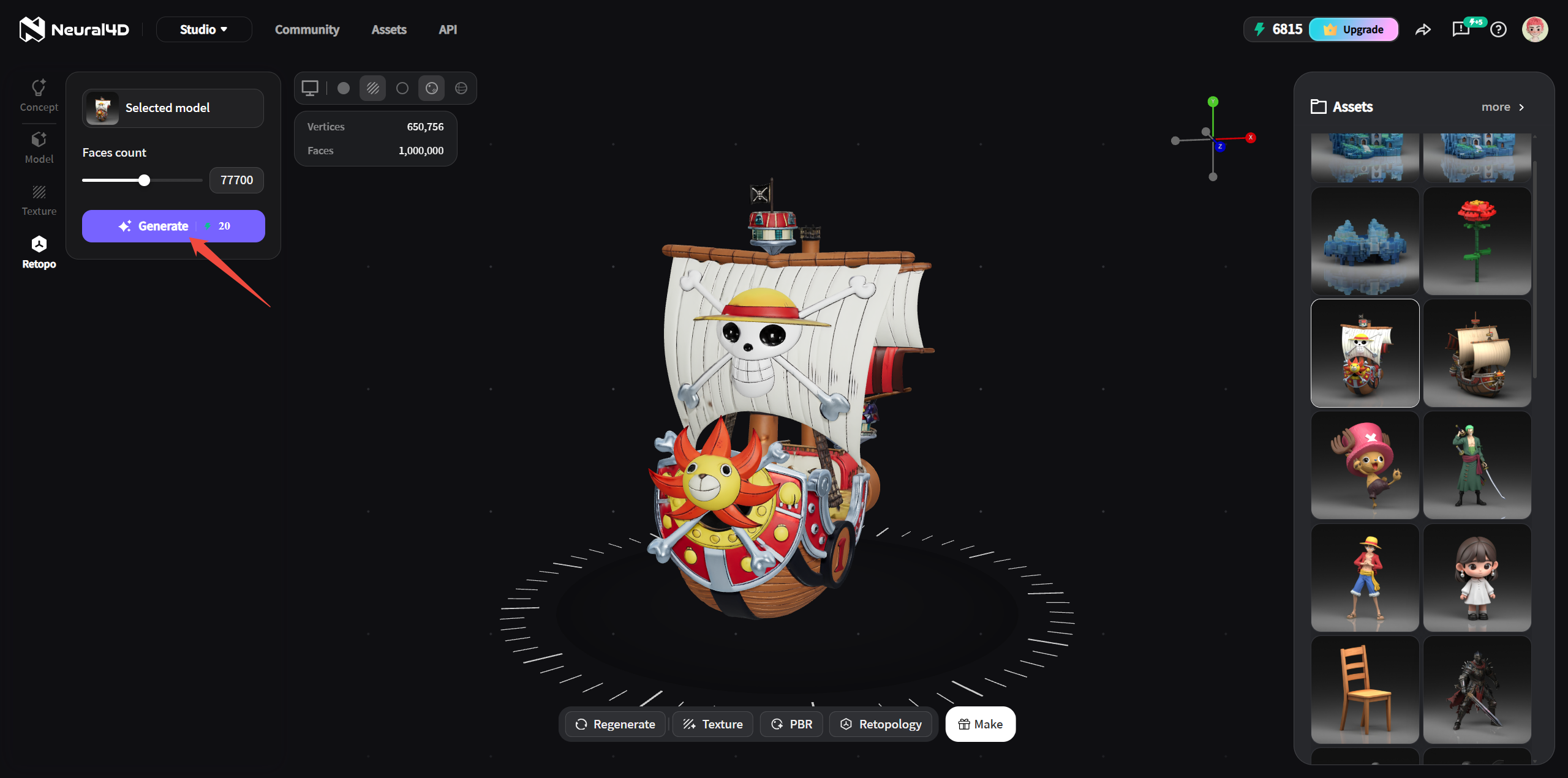

Click Remesh in the bottom toolbar to start the job. When the result is ready, rotate and zoom the model before downloading it.
- Check the outline: Compare curves and corners with the original from similar angles.
- Check small parts: Look closely at thin edges and narrow pieces that matter to your project.
- Check at the intended viewing distance: Decide whether the visible shape is suitable for the way the model will be used.
If a lower face count makes important areas too rough, try a higher target using the original triangle-topology model as input. Compare the new result before choosing which version to use.
Step 4: Download and Check the Imported File
Download the version you want to use in a format your next 3D application accepts. Open that file and compare its outline and small parts with the result you checked in Studio.
Before editing or setting up animation, inspect the mesh in that application. Quad output is quad-dominant, so review the topology around the areas you plan to work on.
Remesh Workflow Questions
Do I need to leave the model view to use Remesh?
No. Open your model and use Remesh in its bottom toolbar. Check that the input model has triangle topology before setting up the job.
What if my target face count is outside the available range?
Check the selected output topology first, since Quad and Triangle have different ranges. Use a target within the range shown for that option; if you change topology, check the target again before starting.
What should I do if small parts look rough after Remesh?
Compare those areas with the original model at the same viewing distance. If the reduction is too strong for your project, try a higher target face count using the original triangle-topology model as input.
What should I check after importing the downloaded model?
Open the exported file in your next 3D application. Check the silhouette and small parts against the result you reviewed in Studio, and inspect the topology before editing or setting up animation.
