AI 3D Model Segmentation

Split Complex Meshes into Clean,

Logical Parts in One Click

Try Model Segmentation Free → Explore All Features

Intelligent Part Decomposition for Production

What is AI Model Segmentation? It is the semantic volumetric parsing of complex 3D meshes into independent, watertight components. Neural4D's Direct3D-S2 engine automates this process to decompose geometry into production-ready parts, preserving clean manifold topology and custom material channels.

Curvature-Aware Semantic Partitioning

Our algorithm parses mesh geometry logically. It automatically isolates components like robot limbs, furniture parts, or clothes, avoiding flat cut planes.

Voxel-Based Watertight Reconstruction

Automatically caps cut seams and applies local remeshing. The result is a set of clean, closed manifold components fully prepared for 3D printing.

Decoupled Material & UV Preservation

Assigns distinct groups and material slots to each separated mesh component. Tweak, edit, or swap parts without disturbing the rest of the model.

Manifold-Preserving Mesh Splitting for CAD and Game Dev

Additive Manufacturing

Split intricate model designs into modular components. Print watertight parts in different colors or materials on multi-jet printers, enabling robust screw-together assemblies.

Furniture & Interior Design

Deconstruct chairs, cabinets, and tables into cushions, drawers, and frames. Apply complex directional textures like grains or fabrics individually with zero stretching.

Character Customization

Isolate character bodies, clothes, armor pieces, and gear. Create modular character assets ready for game engine customization databases and real-time mesh swapping.

Product Design Prototyping

Deconstruct consumer electronics into casings, buttons, and ports. Test design revisions or swap components on a single shared chassis to accelerate visual prototyping cycles.

Production Case Study: Watertight 3D Printing & Assembly

See how a professional modeler decomposes a complex multi-part robot assembly into watertight sub-meshes, ready for multi-material SLA 3D printing and instant physical snap-fit assembly.

AI Segmentation vs. Traditional Manual Cutting

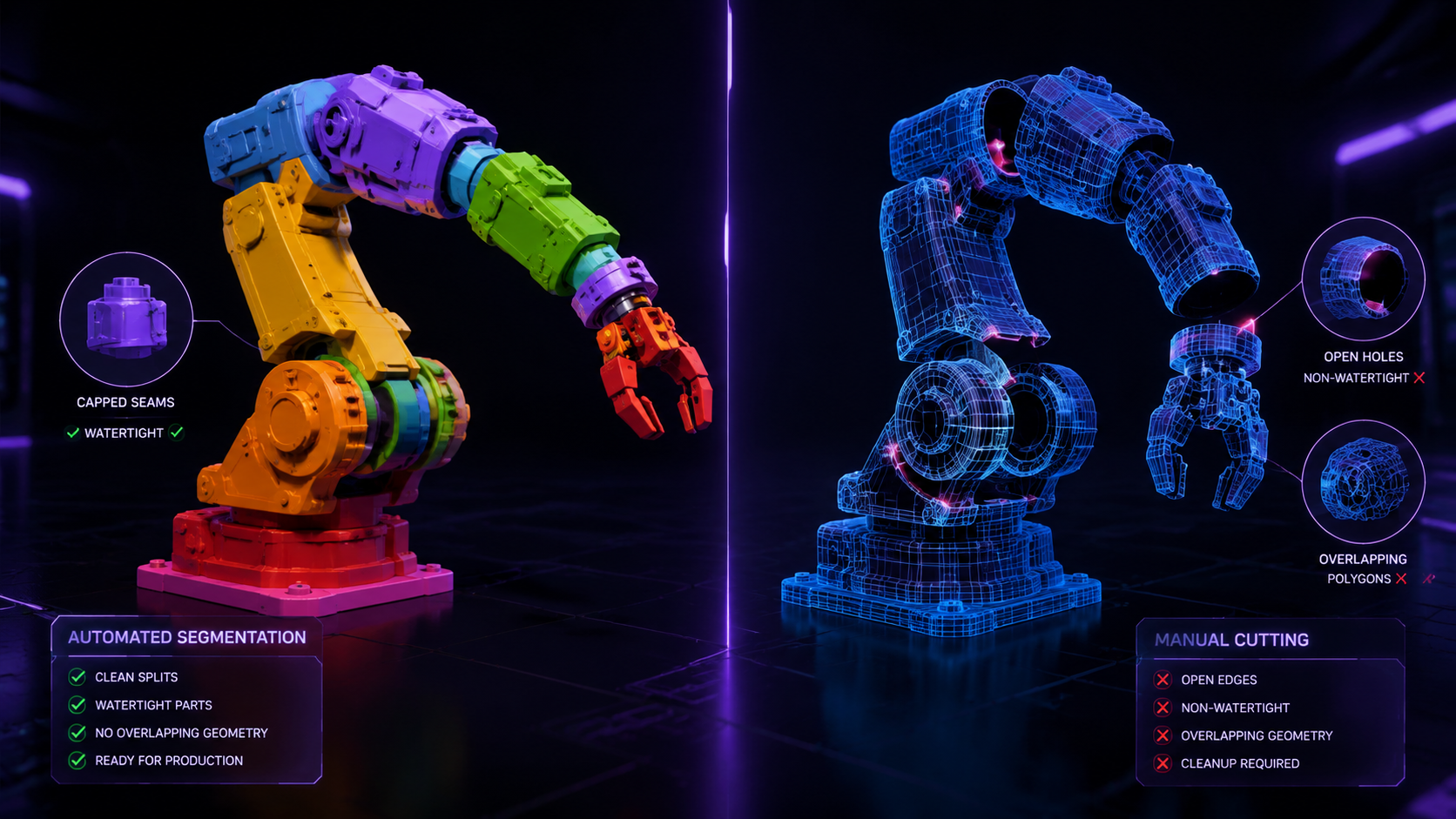

Comparison between AI semantic model segmentation and traditional manual mesh cutting

Metric	Neural4D Direct3D-S2	Traditional Manual Cutting
Watertight Boundary Capping	Fully automated local retopology; guarantees solid watertight manifold sub-meshes	Requires manual polygon bridge building; high risk of leaving open seams
Processing Efficiency	Processed in milliseconds during volumetric mesh inference	Hours of tedious vertex manipulation, cutting planes, and mesh cleanup
Structure Hierarchy	Generates nested groups with discrete material assignments ready to animate	Requires manual object grouping, pivot resets, and multi-material setup
Semantic Accuracy	Curvature-aware boundary tracing following organic and hard-surface joints	Restricted to flat planar slices or messy lasso selections in 3D views

Engine Performance & Technical Boundaries

Neural4D's Direct3D-S2 engine is designed for professional assets. Below are the precise technical bounds, format supports, and tolerance metrics for production pipelines.

Mesh & File Limits

Maximum Polycount: Up to 1,000,000 triangles per input mesh. Models exceeding 1.0M tris are automatically pre-decimated.
Upload File Size: Maximum 100MB per file in OBJ, FBX, GLB, STL, USDZ, or BLEND format.
Segmentation Limit: Decomposes complex assemblies into up to 32 discrete, logically grouped sub-objects.

Non-Manifold Tolerance

Voxel-Based Conversion: Converts boundary representations to voxels before partitioning, bypassing mesh topology errors.
Geometric Robustness: 100% tolerant to self-intersecting faces, open sheet boundaries, flipped normals, and zero-area faces.
Manifold Capping: Automatically seals cut seams with new closed manifold boundary walls.

Processing & Precision

Segmentation Time: Averages 5 to 15 seconds depending on mesh complexity and polygon density.
UV Preservation: Retains existing texture maps, assigning unique Material IDs and slots to each sub-component.
Detail Retention: Maintains 98%+ original geometric fidelity without structural distortion.

Experience AI Model Segmentation Now →

Frequently Asked Questions

What is AI 3D Model Segmentation and how does it work?

AI 3D model segmentation is the process of splitting a complex 3D mesh into clean, logical, and watertight parts. Powered by Neural4D's Direct3D-S2 engine, it uses semantic volumetric parsing to decompose geometry (such as robot limbs, product casings, or furniture parts) automatically rather than relying on flat plane cuts.

Can I export the segmented parts as separate 3D files?

Yes. You can download the segmented model as a single nested hierarchy with grouped sub-meshes or export each part as an independent watertight file in OBJ, GLB, STL, FBX, USDZ, or BLEND format.

Does the segmentation preserve watertight topology?

Absolutely. The algorithm automatically caps cut boundaries and runs local retopology to ensure every generated sub-component is a closed manifold watertight solid, fully ready for 3D printing and Boolean modeling.

Is it possible to customize or swap out individual components?

Yes, since the parts are saved as separate objects with their own material slots, you can easily select, modify, or swap individual parts (like limbs, cushions, or wheels) in Blender or Unity without affecting the rest of the model.
